SWPUCTF 2021 新生赛astJS

runwu2204 Lv6
  2023-07-08 21:17:07 2023-07-08 21:17:07 创建   2023-07-08 22:08:22 2023-07-08 22:08:22 更新

猜错了，可以通过escodegen包来生成对应的js代码

1
2
npm i escodegen optionator  -g
esgenerate "对应的ast语法树json文件"

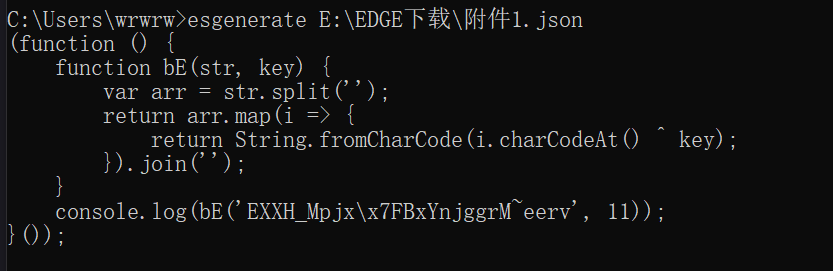

image-20230708220700293

直接运行此段代码即可

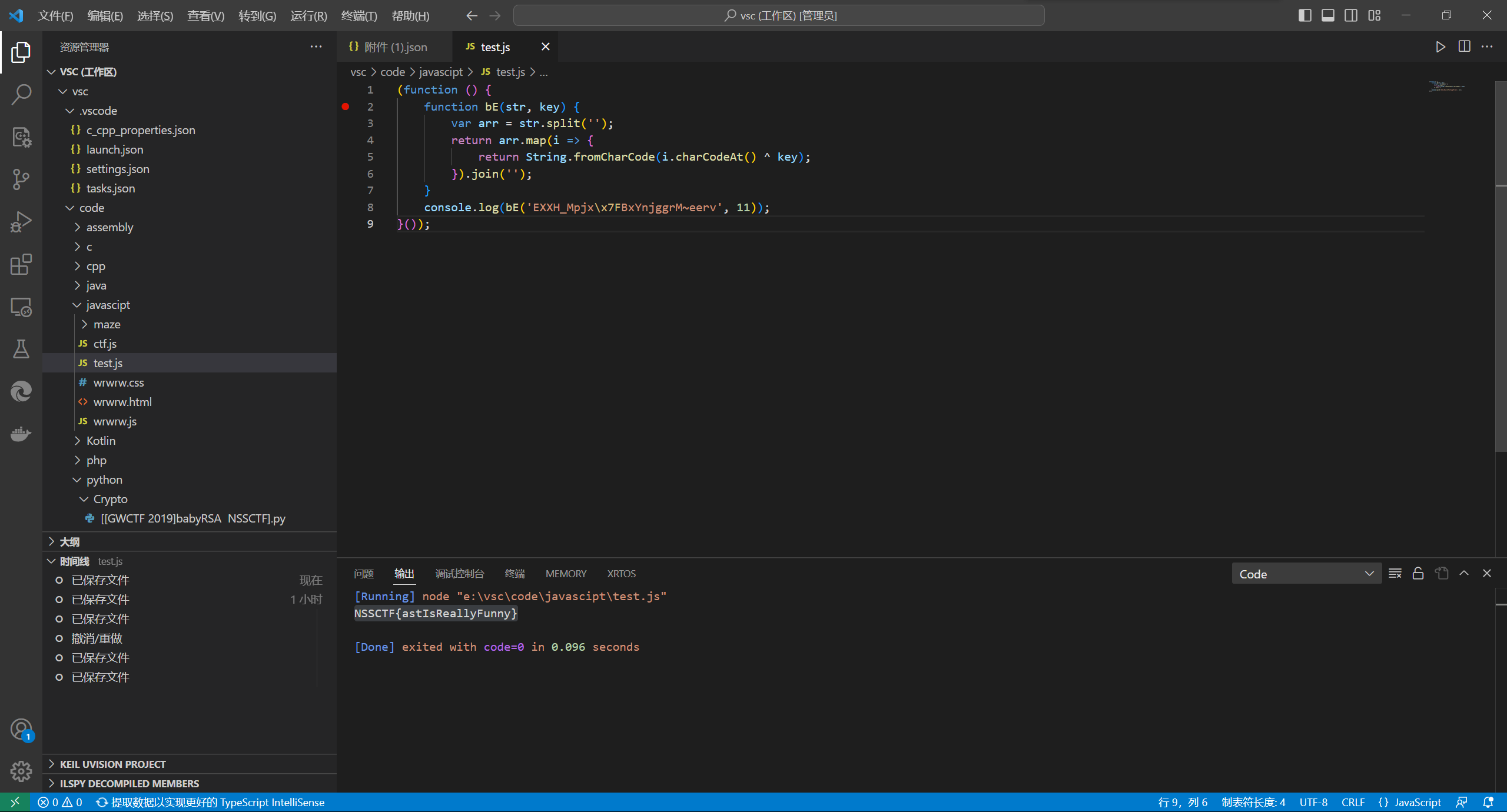

image-20230708220815639

AST抽象语法树是在js代码生成过程中产生的，似乎是不可直接生成代码的类似于python的字节码

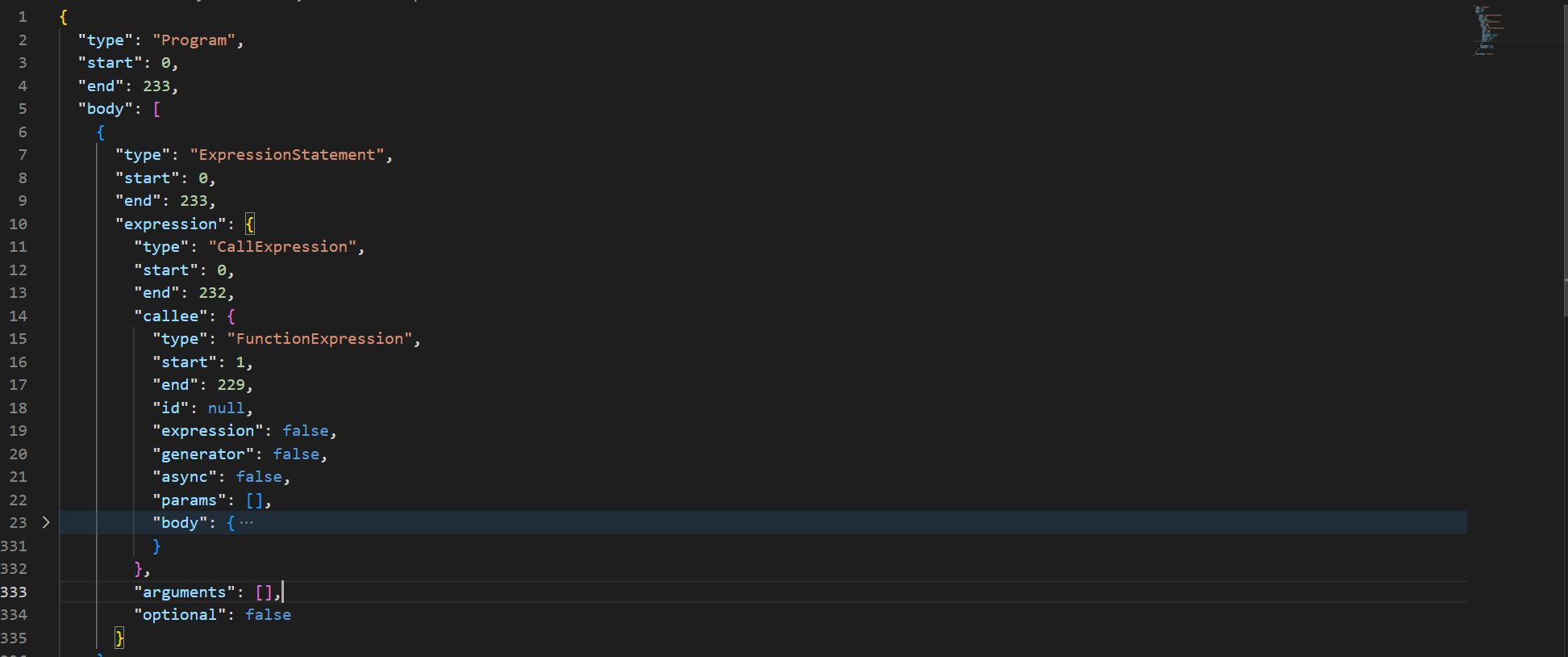

image-20230708210047544

结构是层层递进的，外面是类似于程序名的东西，可以通过层层展开来寻找对应的同级的代码逻辑

下面是在body内第一个声明的，类型是函数声明(“FunctionDeclaration”)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
{
  "type": "FunctionDeclaration",//类型函数声明
  "start": 18,
  "end": 177,
  "id": {
    "type": "Identifier",//声明函数名为bE
    "start": 27,
    "end": 29,
    "name": "bE"
  },
  "expression": false,
  "generator": false,
  "async": false,
  "params": [//声明函数的参数，此处声明了两个一个叫str，一个叫key，类型未知
    {
      "type": "Identifier",
      "start": 30,
      "end": 33,
      "name": "str"
    },
    {
      "type": "Identifier",
      "start": 34,
      "end": 37,
      "name": "key"
    }
  ],
  "body": {
    "type": "BlockStatement",//一个代码块集合，是function的body的一部分，相当于function的代码块
    "start": 38,
    "end": 177,//定义代码块起始与终止位置
    "body": [
      {
        "type": "VariableDeclaration",//此处有多层VariableDeclaration,相当于多个变量声明
        "start": 46,
        "end": 70,
        "declarations": [
          {
            "type": "VariableDeclarator",
            "start": 50,
            "end": 69,
            "id": {
              "type": "Identifier",
              "start": 50,
              "end": 53,
              "name": "arr"
            },//变量名为arr
            "init": {//变量的初始化，为init包裹的内部的计算后的值
              "type": "CallExpression",
              "start": 56,
              "end": 69,
              "callee": {
                "type": "MemberExpression",
                "start": 56,
                "end": 65,
                "object": {
                  "type": "Identifier",
                  "start": 56,
                  "end": 59,
                  "name": "str"
                },
                "property": {
                  "type": "Identifier",
                  "start": 60,
                  "end": 65,
                  "name": "split"
                },
                "computed": false,
                "optional": false
              },//调用split函数
              "arguments": [
                {
                  "type": "Literal",
                  "start": 66,
                  "end": 68,
                  "value": "",
                  "raw": "''"
                }//传入split函数的参数
              ],
              "optional": false
            }
          }
        ],
        "kind": "var"
      },//可翻译为arr=str.split()
      {
        "type": "ReturnStatement",//代码块的返回值(此处只有一个代码块，相当于整个函数的返回值)
        "start": 77,
        "end": 171,
        "argument": {
          "type": "CallExpression",
          "start": 84,
          "end": 171,
          "callee": {
            "type": "MemberExpression",
            "start": 84,
            "end": 167,
            "object": {
              "type": "CallExpression",
              "start": 84,
              "end": 162,
              "callee": {
                "type": "MemberExpression",
                "start": 84,
                "end": 91,
                "object": {
                  "type": "Identifier",
                  "start": 84,
                  "end": 87,
                  "name": "arr"
                },
                "property": {
                  "type": "Identifier",
                  "start": 88,
                  "end": 91,
                  "name": "map"
                },
                "computed": false,
                "optional": false
              },//arr.map
              "arguments": [
                {
                  "type": "ArrowFunctionExpression",
                  "start": 92,
                  "end": 161,
                  "id": null,
                  "expression": false,
                  "generator": false,
                  "async": false,
                  "params": [
                    {
                      "type": "Identifier",
                      "start": 93,
                      "end": 94,
                      "name": "i"
                    }
                  ],
                  "body": {
                    "type": "BlockStatement",
                    "start": 97,
                    "end": 161,
                    "body": [
                      {
                        "type": "ReturnStatement",
                        "start": 107,
                        "end": 153,
                        "argument": {
                          "type": "CallExpression",
                          "start": 114,
                          "end": 153,
                          "callee": {
                            "type": "MemberExpression",
                            "start": 114,
                            "end": 133,
                            "object": {
                              "type": "Identifier",
                              "start": 114,
                              "end": 120,
                              "name": "String"
                            },
                            "property": {//调用对应的类方法fromcharcode
                              "type": "Identifier",
                              "start": 121,
                              "end": 133,
                              "name": "fromCharCode"
                            },
                            "computed": false,
                            "optional": false
                          },
                          "arguments": [
                            {
                              "type": "BinaryExpression",
                              "start": 134,
                              "end": 152,
                              "left": {
                                "type": "CallExpression",
                                "start": 134,
                                "end": 148,
                                "callee": {
                                  "type": "MemberExpression",
                                  "start": 134,
                                  "end": 146,
                                  "object": {
                                    "type": "Identifier",
                                    "start": 134,
                                    "end": 135,
                                    "name": "i"
                                  },
                                  "property": {
                                    "type": "Identifier",
                                    "start": 136,
                                    "end": 146,
                                    "name": "charCodeAt"
                                  },
                                  "computed": false,
                                  "optional": false
                                },
                                "arguments": [],
                                "optional": false
                              },
                              "operator": "^",
                              "right": {
                                "type": "Identifier",
                                "start": 149,
                                "end": 152,
                                "name": "key"
                              }//调用了运算符^(异或)对前面的值做右异或(有些运算符可能不满足交换律需要注意计算方向)
                            }
                          ],
                          "optional": false
                        }
                      }
                    ]
                  }
                }
              ],
              "optional": false
            },
            "property": {
              "type": "Identifier",
              "start": 163,
              "end": 167,
              "name": "join"
            },
            "computed": false,
            "optional": false
          },
          "arguments": [
            {
              "type": "Literal",
              "start": 168,
              "end": 170,
              "value": "",
              "raw": "''"
            }
          ],
          "optional": false
        }
      }
    ]
  }
},

上面的基本代码逻辑就是将每个传进去的字符异或上key并返回异或后的新的字符串

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
{
  "type": "ExpressionStatement",
  "start": 181,
  "end": 227,
  "expression": {
    "type": "CallExpression",
    "start": 181,
    "end": 227,
    "callee": {
      "type": "MemberExpression",
      "start": 181,
      "end": 192,
      "object": {
        "type": "Identifier",
        "start": 181,
        "end": 188,
        "name": "console"
      },
      "property": {
        "type": "Identifier",
        "start": 189,
        "end": 192,
        "name": "log"
      },
      "computed": false,
      "optional": false
    },
    "arguments": [
      {
        "type": "CallExpression",
        "start": 193,
        "end": 226,
        "callee": {
          "type": "Identifier",
          "start": 193,
          "end": 195,
          "name": "bE"
        },
        "arguments": [
          {
            "type": "Literal",
            "start": 196,
            "end": 222,
            "value": "EXXH_MpjxBxYnjggrM~eerv",
            "raw": "'EXXH_MpjxBxYnjggrM~eerv'"
          },
          {
            "type": "Literal",
            "start": 223,
            "end": 225,
            "value": 11,
            "raw": "11"
          }
        ],
        "optional": false
      }
    ],
    "optional": false
  }
}

此处基本就是调用之前的函数bE，对参数”EXXH_MpjxBxYnjggrM~eerv”，异或上11，再通过console(类)的log(方法)输出flag

所以此处可以直接通过异或就能得出对应的flag

因为此处其编码无法显示出对应的字符，直接通过二进制编辑器打开，查看其二进制编码

image-20230708214959751

exp:

1
2
3
4
5
6
7
8
9
10
11
12
In [1]: a=[0x45 ,0x58 ,0x58 ,0x48 ,0x5F ,0x4D ,0x70 ,0x6A ,0x78 ,0x7F,0x42 ,0x78 ,0x59 ,0x6E ,0x6A ,0x67^M
   ...: ,0x67 ,0x72,0x4D ,0x7E,0x65 ,0x65 ,0x72 ,0x76]
   ...: ^M
   ...:

In [2]: str1=''
   ...: for i in a:
   ...:     str1+=chr(i^11)
   ...:

In [3]: str1
Out[3]: 'NSSCTF{astIsReallyFunny}'
